8x1mm Stainless Steel Capillary Tube , Steel Capillary Tube For Beer Equipment

Product Categories

Precision Stainless Steel Tubing [40]
Welded Stainless Steel Tube [37]
Seamless Stainless Steel Tube [36]
Stainless Steel Heat Exchanger Tube [59]
SS Hydraulic Tubing [44]
Stainless Steel Instrument Tubing [30]
SS Sanitary Tubing [31]
Automotive Stainless Steel Tubing [33]
SS Capillary Tube [35]
Stainless Steel Coiled Tubing [37]
Metric SS Tubing [28]
High Purity Stainless Steel Tubing [30]
Bright Annealed Stainless Steel Tube [30]
Duplex Stainless Steel Tube [37]
Ferritic Stainless Steel Tube [37]
Welded Titanium Tubing [34]
Nickel Alloy Tube [30]

Spezilla Tube Co., Ltd. (Shanghai)

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

8x1mm Stainless Steel Capillary Tube , Steel Capillary Tube For Beer Equipment

Name: 8x1mm Stainless Steel Capillary Tube Steel Capillary Tube For Beer Equipment
Brand: BWSS
Price: 1 USD

Quality 8x1mm Stainless Steel Capillary Tube , Steel Capillary Tube For Beer Equipment wholesale

Brand Name : BWSS

Model Number : TP304/TP316L/TP904L

Certification : PED, ISO, GOST

Place of Origin : CHINA

MOQ : 0.5-1TONS

Price : Negotiable

Payment Terms : T/T

Supply Ability : 1000 tons per month

Delivery Time : 20 days

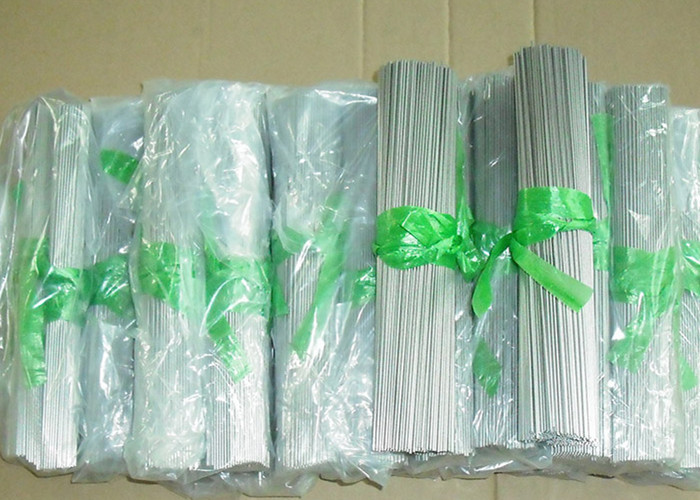

Packaging Details : Each in PVC bags, than in Bundles

Application : Beer Equipment

Material Grade : TP304 304L 316L

Outer Diameter : 8mm

Wall Thickness : 1.0mm

Length : cut into pcs

Process Method : Welded,precision rolled,cold drawn

Standard : ASTM/AISI ,GB,JIS,DIN,EN,etc

Surface Finish : 180G, 320G, 400G Satin / Hairline,400G, 500G, 600G or 800G Mirror finish

Type : High Precision Stainless Steel Tubing / Tube

Package : Wooden Case

Contact Now

Stainless Steel 304 304L 316L Tubes Size 8x1mm used for Beer Equipment

The Stainless Steel Capillary Tubes are used while supplying liquids and gases from sensors to measuring instruments. The tubes are used in various critical applications with having an inner surface free from oil, grease and dust particles. These tubes are available in different sizes, tolerances and thickness as per the requirements of our clients.

Stainless Steel Capillary Pipes & Tubes are used in different applications of intra/extra cellular biology, separation sciences, hematology sampling and study, biotechnology, and biochemistry. Capillary Tube is a long, narrow tube of constant diameter.

TYPE:

SEAMLESS / ERW / WELDED/ SEMI-SEAMLESS / FABRICATED

Grade of stainless steel capillary pipes & tubes:

304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L.

Non-Ferrous Capillary pipes & tubes:

Inconel, Monel, Hastelloy, Copper, Brass, Nickel, Copper-nickel alloys, Copper alloys, nickel alloys, duplex stainless steel and other types of steels.

FORM:

ROUND, STRAIT, HYDRAULIC ETC.

LENGTH:

SINGLE RANDOM, DOUBLE RANDOM , COIL FORM, CUT LENGTH

END:

PLAIN END, BEVELED END.

Surface conditions for Stainless steel 304/304L capillary pipes and tubes:

Stainless steel 304/304L Bright Annealed capillary pipes and tubes
Stainless steel 304/304L Polished capillary pipes and tubes
Stainless steel 304/304L Annealed & Pickled capillary pipes and tubes
Stainless steel 304/304L Bright Annealed & polished capillary pipes and tubes
Stainless steel 304/304L Electro polishing capillary pipes and tubes

Stainless Steel Capillary Tube Size Range:

Gauge	Outside Diameter Tolerance mm	Regular Wall Thickness (RWT) mm	Thin Wall Thickness mm	Extra Thin Wall Thicknessmm	Ultra Thin Wall Thickness mm
30	0.304 – 0.317	0.064 – 0.089
29	o.330 – 0.342	0.064 – 0.089
28	0.355 – 0.368	0.076 – 0.102
27	0.406 – 0.419	0.089 – 0.115	0.064 – 0.089
26	0.457 – 0.469	0.089 – 0.114
25	0.508 – 0.520	0.115 – 0.140	0.089 – 0.114
24	0.558 – 0.571	0.114 – 0.140	0.089 – 0.114		0.051 – 0.102
23	0.635 – 0.647	0.140 – 0.165	0.089 – 0.114		0.051 – 0.102
22	0.711 – 0.723	0.140 – 0.165	0.096 – 0.121	0.077 – 0.102	0.051 – 0.102
21	0.812 – 0.825	0.140 – 0.165	0.102 – 0.127		0.051 – 0.102
20	0.901 – 0.914	0.108 – 0.165	0.108 – 0.134
19	1.054 – 1.079	0.166 – 0.216	0.102 – 0.140	0.070 – 0.108
18	1.257 – 1.282	0.191 – 0.241	0.127 – 0.165	0.083 – 0.121	0.051 – 0.102
17	1.460 – 1.485	0.177 – 0.229	0.115 – 0.152	0.083 – 0.127	0.057 – 0.102
16	1.638 – 1.663	0.204 – 0.254	0.127 – 0.165	0.096 – 0.133	0.070 – 0.121
15	1.816 – 1.841	0.204 – 0.254	0.127 – 0.165	0.096 – 0.134	0.070 – 0.121
14	2.082 – 2.133	0.216 – 0.292	0.165 – 0.229	0.114 – 0.165	0.076 – 0.134
13	2.387 – 2.438	0.267 – 0.343	0.191 – 0.267
12	2.743 – 2.749	0.267 – 0.321
11	3.023 – 3.073	0.293 – 0.368	0.216 – 0.292
10	3.378 – 3.429	0.318 – 0.394	0.216 – 0.292

Stainless Steel Capillary Tubes for medical needle applications and applicable fields:

Hydraulic control lines with seamless coil tubing
Marine seamless coil tubing
Oilfield test cable coil tubing
High-pressure instrumentation coil tubing
Health and medical grade seamless coil tubing
Cold heat exchanger seamless coil tubing
Coal mine detection seamless coil tubing
Deep-sea oil drilling seamless coil tubing
Instant water heater with seamless coil tubing
Water dispenser beverage machine with coil tubing
Refrigerating Equipment, Condensers
Beverage Machinery, machines in brewery industry
Evaporators,Heat Exchanger
Liquid/ Gas Transportation
CNG with coil tubing
Other Industries

Advantage:

• Advanced production and inspection equipment

• Top quality control system and service system

• Professional & Sincerity

• Competitive Price

• Good Reputation

• Timely Delivery

Applications Of Stainless Steel Capillary Tube

Medical device industry – injection needle tube, puncture needle tube
Industrial electric heating tube, oil tube
Temperature sensor, Sensor tube, Instrument tube
Automobile tube
Food industrial pipe,

1. Products Specification

Stainless Steel capillary tubes for medical needle Grade	Straight/ Coil tubing TP 304, TP 304L, TP 316/316L, TP321, TP316SS TP310S/ Incoloy800/825/600/625/718 Monel400/ K-50 etc.
Stainless Steel capillary tubes for medical needle Standard	Straight/ Coil tubing ASTM, GB, AISI, JIS, DIN,EU
Stainless Steel capillary tubes for medical needle Diameter	Straight/ Coil tubing 0.33mm-76mm
Stainless Steel capillary tubes for medical needle Thickness	Straight/ Coil tubing 0.1mm-3.0mm
Stainless Steel capillary tubes for medical needle Length	Straight/ Coil tubing Depending on your requirement 50-2000meters
Stainless Steel capillary tubes for medical needle Technique	Straight/ Coil tubing Cold drawing, precision rolling

Type	Chemical Composition(%)
ASTM	C	Cr	Ni	Mn	P	S	Mo	Si	Cu	N
TP304	≤0.08	18.0-20.0	8.0-11.0	≤2.00	≤0.045	≤0.030	- - -	≤1.00	- - -	- - -
TP304L	≤0.035	18.0-20.0	8.0-13.0	≤2.00	≤0.045	≤0.030	- - -	≤1.00	- - -	- - -
TP304H	0.04-0.10	18.0-20.0	8.0-11.0	≤2.00	≤0.045	≤0.030	- - -	≤1.00	- - -	- - -
TP310S	≤0.08	24.0-26.0	19.0-22.0	≤2.00	≤0.045	≤0.030	≤0.75	≤1.00	- - -	- - -
TP316	≤0.08	16.0-18.0	11.0-14.0	≤2.00	≤0.045	≤0.030	2.00-3.00	≤1.00	- - -	- - -
TP316L	≤0.035	16.0-18.0	10.0-14.0	≤2.00	≤0.045	≤0.030	2.00-3.00	≤1.00	- - -	- - -
TP316N	≤0.08	16.0-18.0	11.0-14.0	≤2.00	≤0.045	≤0.030	2.00-3.00	≤1.00	- - -	0.10-0.16
TP317L	≤0.035	18.0-20.0	11.0-15.0	≤2.00	≤0.045	≤0.030	3.0-4.0	≤1.00	- - -	- - -
TP321	≤0.08	17.0-19.0	9.0-12.0	≤2.00	≤0.045	≤0.030	- - -	≤1.00	- - -	≤0.10
TP321H	0.04-0.10	17.0-19.0	9.0-12.0	≤2.00	≤0.045	≤0.030	- - -	≤1.00	- - -	- - -
TP347	≤0.08	17.0-19.0	9.0-13.0	≤2.00	≤0.045	≤0.030	- - -	≤1.00	- - -	- - -

8x1mm Stainless Steel Capillary Tube , Steel Capillary Tube For Beer Equipment

Product Tags:

stainless steel capillary tube

steel capillary tube

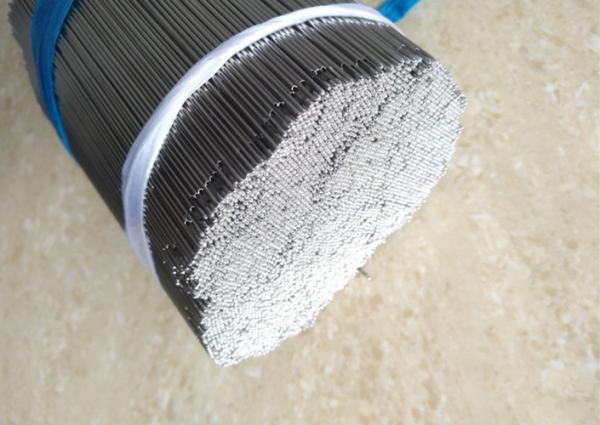

8x1mm Stainless Steel Capillary Tube , Steel Capillary Tube For Beer Equipment Images
